During the takeoff roll at the airport in Raleigh, North Carolina, the pilot accelerated the Beech 58 to rotation speed.
Upon starting to rotate the airplane, the nose landing gear began a retraction sequence, collapsing under the airplane. The pilot reduced the throttles to idle and applied the brakes. The main landing gear also retracted, and the airplane slid to a stop on the runway, resulting in substantial damage to the lower fuselage.
Both the pilot and the pilot-rated passenger verified that the landing gear handle was in the down position prior to and after the accident.

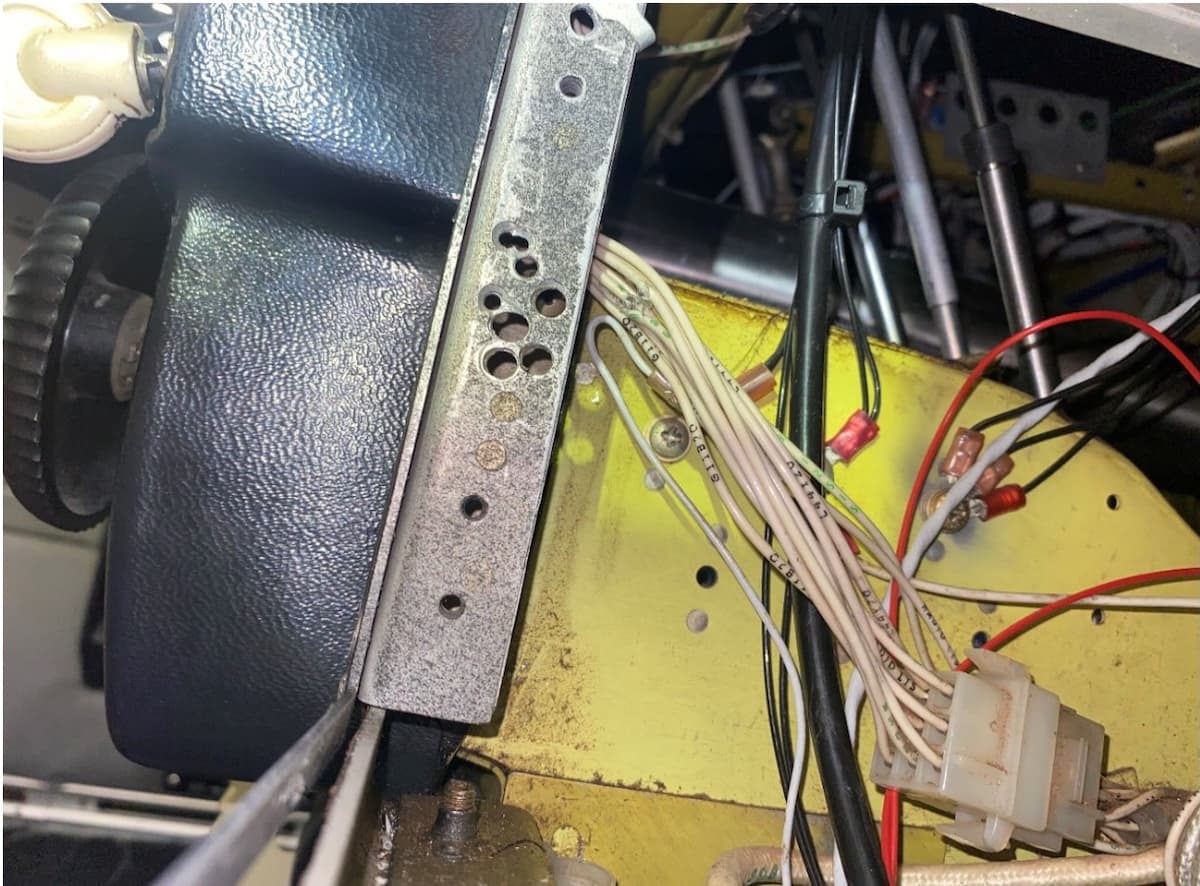

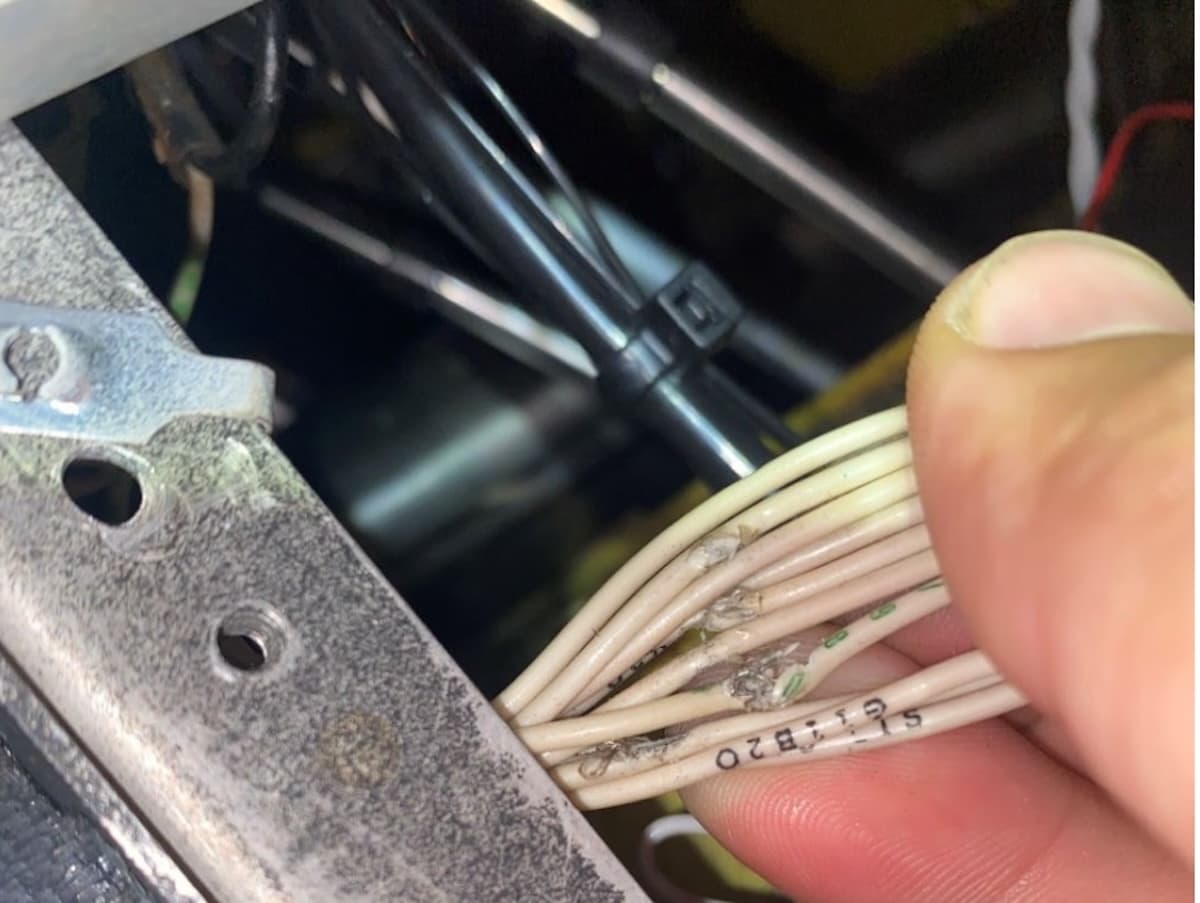

Post-accident examination revealed damage to several wires leading to the landing gear selector switch on the instrument panel. The wires were found to be actively arcing when moved or touched.
Probable Cause: Damage to the landing gear selector switch wire bundle which resulted in an inadvertent retraction of the landing gear during the takeoff roll.
To download the final report. Click here. This will trigger a PDF download to your device.
This September 2024 accident report is provided by the National Transportation Safety Board. Published as an educational tool, it is intended to help pilots learn from the misfortunes of others.
That wiring is not the way Beech did it.
Quite obvious, that chaffing is damaged from a screw protruding through the side of the instrument panel. I once spent three days troubleshooting , a gear problem on a PA 32R that ended up being a screw intermittently chafing a wire.
The chafing of wiring is becoming more of a problem with these older aircraft, [47 yo].
The other problems are due to no strain relief near the termination [ alternator batt wire], and no sleeving to prevent chafing, or ‘zip ties’ holding wiring away from other parts.
Unfortunately, most of the wiring is difficult to access, but during an annual inspection, a lot of these problem areas can be investigated.
I’ve seen a number of these issues assisting an A&P with electrical problems.
Loose screws on the back of circuit breakers are another potential problem…check these at an annual.
