AirCorps Aviation of Bemidji, Minnesota, walked away with the Grand Champion World War II award and the Phoenix Award at EAA AirVenture Oshkosh 2023 for the work they performed on a Republic P-47D Thunderbolt abandoned in New Guinea during World War II.
AirCorps has smartly harnessed computer power to recreate parts from two-dimensional drawings or sample items, creating intelligent computer-aided drafting tools.
Matching that digital savvy, AirCorps Aviation has an eye for vintage construction process details that add to the look and feel of its restorations.
The latest result from the company’s shop is the only flying Republic-built razorback Thunderbolt. (Planes of Fame Air Museum has a flying razorback that is a license-built P-47G made by Curtiss, for the purists in the audience.)
Razorback Thunderbolts have a high fuselage fairing behind the cockpit that narrows to a ridge — or razorback — at its apex.

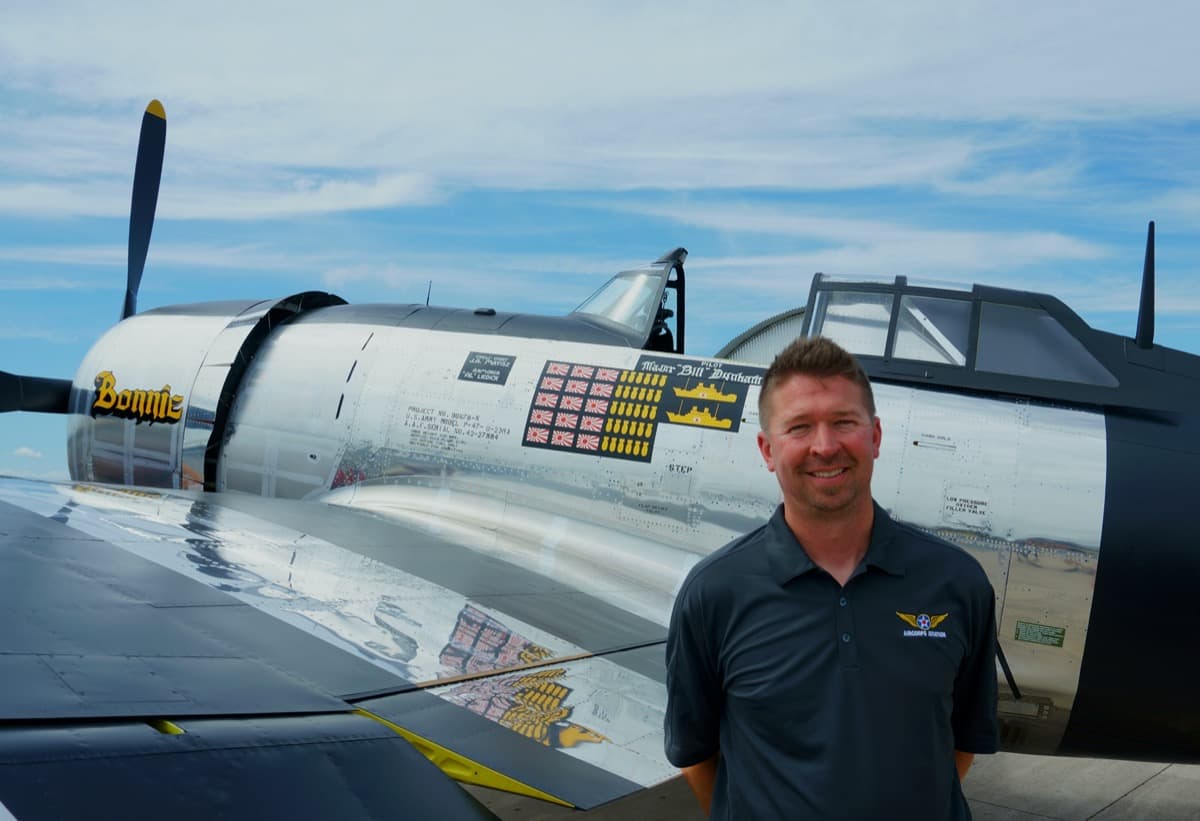

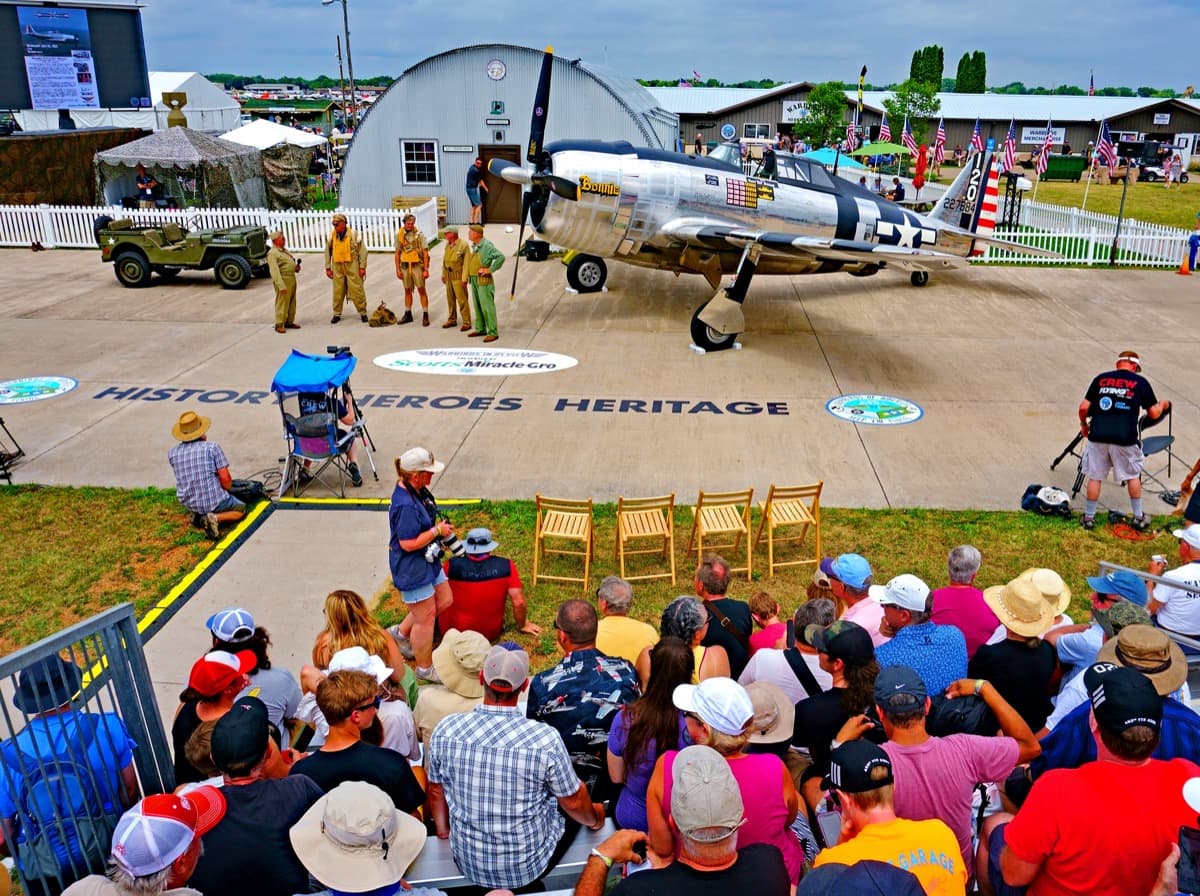

Erik Hokuf of AirCorps Aviation told a standing-room-only crowd at AirVenture during a Warbirds in Review session that the P-47 incorporates more than 40,000 parts in its large airframe.
All the rivets in the P-47 were removed during restoration. The skin is new, and the large ovoid cowling was manufactured by AirCorps.

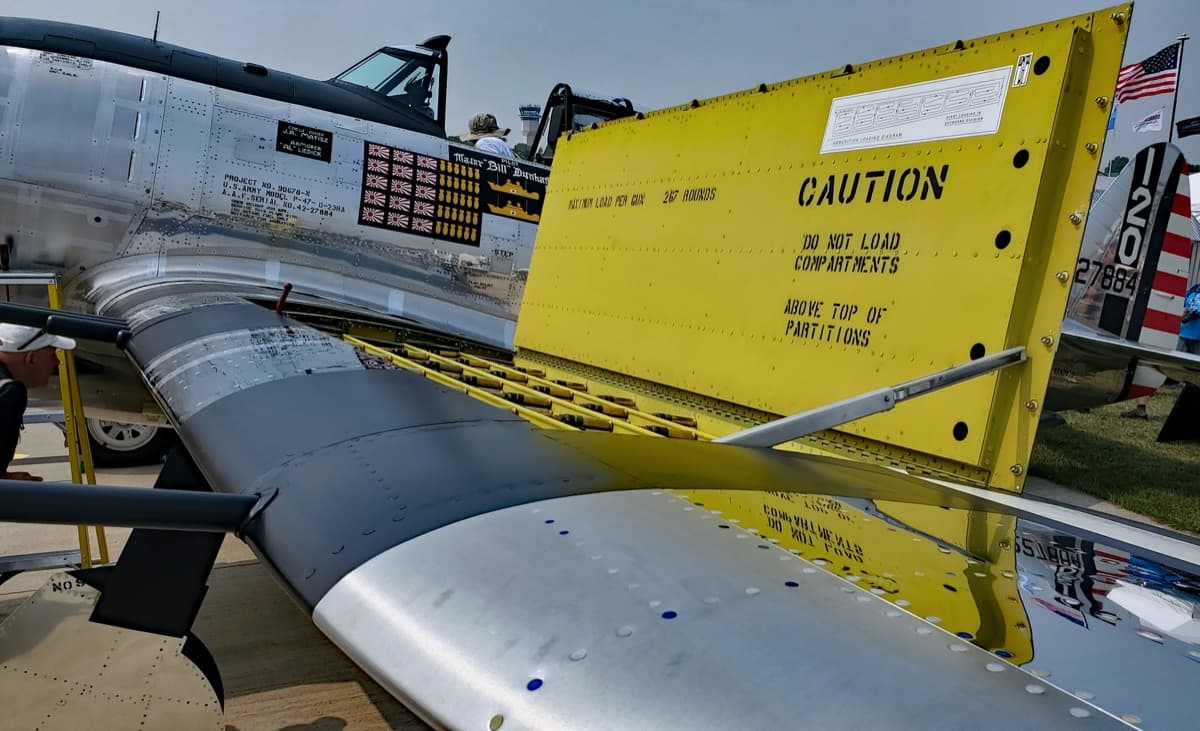

Construction of the cowling, as well as other externally visible parts of the massive wings and fuselage, involved spot-welding internal structure to the skin.
Republic used an acid-etch in strips along the skin where spot welding would take place, and this resulted in a different sheen that stands out on this bare metal airframe.
Formers were temporarily attached to the skin in a few strategic locations with Cleco fasteners to ensure proper fit and alignment before the spot welding was conducted. Subsequently, the Clecos were removed, and the holes for the Clecos were plugged with rivets.
The result is an industrial, functional look that AirCorps reproduced.
Over time, the skin will acquire a patina that diminishes the prominence of the etching stripes.
If warbird rebuilds of 40 or 50 years ago sometimes were shiny and salon-looking, efforts in recent years have emphasized realistic construction details that provide an authentic, and intense, time-machine look.
The knife-edge windscreen of the razorback Thunderbolts is made of curved laminated safety glass. For the restoration, AirCorps outsourced new glass to do the job properly.
How long does such a restoration from the ground up take? How about more than a decade? The hulk of the P-47 arrived at AirCorps Aviation in 2011.
The P-47 is powered by a Pratt and Whitney R-2800 engine.
But not just any R-2800 would do for this spot-on restoration. It had to be the correct Dash-59 version, properly mated to a Curtiss Electric C542S-A114 symmetrical wide blade propeller.
While some P-47 restorations fly suitably well with Hamilton Standard propellers, the matching of the proper Curtiss propeller with this engine gives this restoration faster acceleration, pilot Bernie Vasquez told the AirVenture crowd.
He added the high streamlining of the razorback versions of the P-47 create less drag than found on later bubble-canopy Thunderbolts.

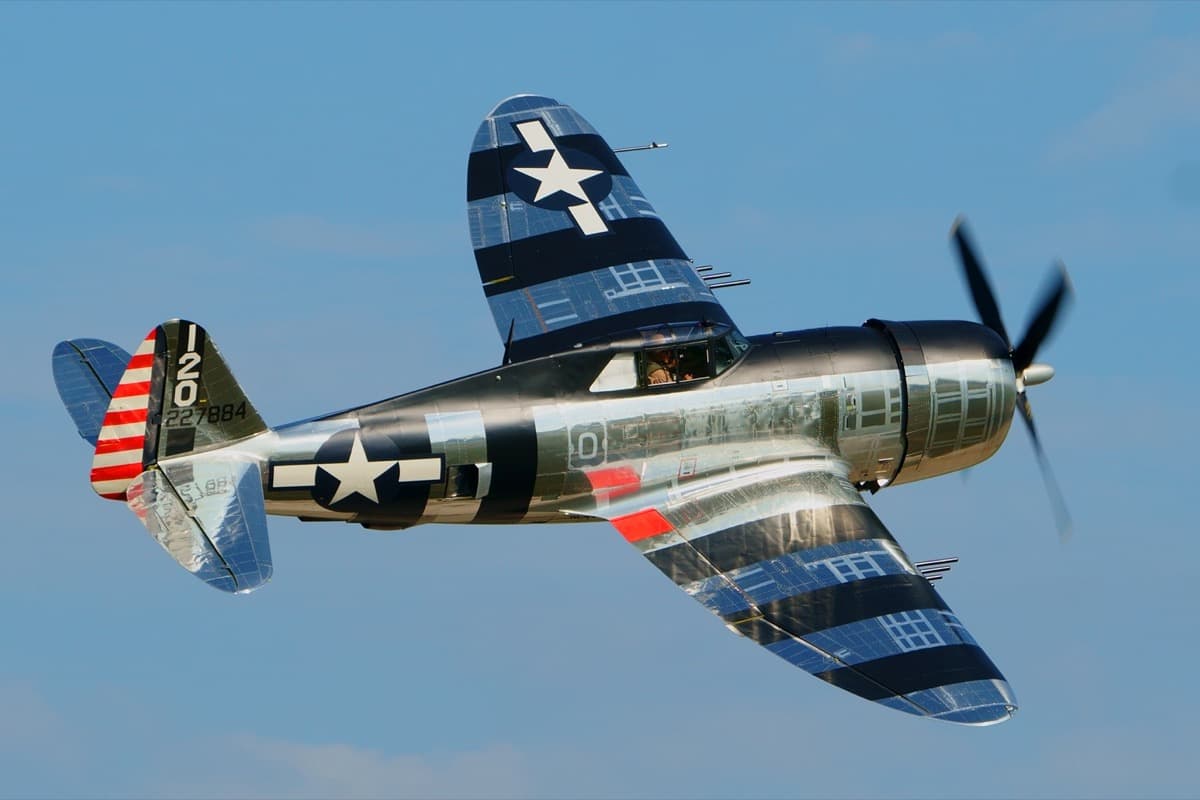

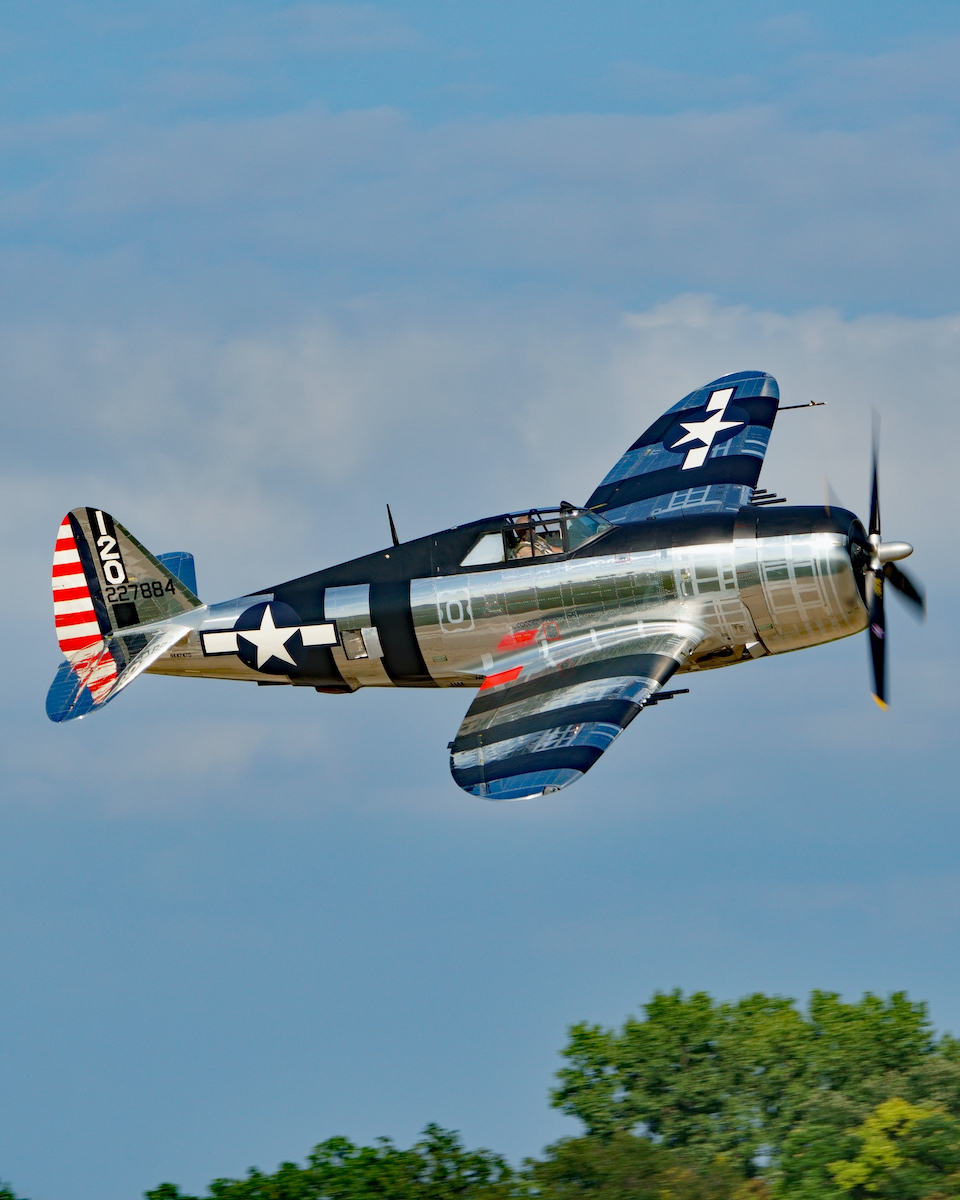

Several times during the week Vasquez delighted the Oshkosh crowd with powerful flying demonstrations of the P-47.
This P-47, putting out more than 2,300 horsepower, is equipped with a water alcohol injection tank to cool the engine for brief periods of high-power activity.
The Dakota Territory Air Museum in Minot, North Dakota, is the home of this fabulous warbird. The museum opted to have the Thunderbolt painted in the markings of P-47 ace William Dunham of the 348th Fighter Group.
Dunham earned 16 victories over Japanese aircraft by war’s end. He is also remembered for a mission in which he watched a Japanese pilot bail out of the aircraft Dunham had just shot.
Stories of Japanese pilots gunning Americans as they drifted in their parachutes initially prompted Dunham to line up on the enemy aviator for that treatment in the heat of battle. But he stopped short of firing at his opposing flier, and watched him plunge into the sea, with no life jacket visible.
Dunham flew low overhead and tossed out his own life jacket to the Japanese pilot in the water.
The ultimate fate of that downed enemy flier has been lost to history, but Dunham’s chivalry lives on in the Thunderbolt painted to represent his aircraft.
